Fractal Design Meshify C White Steel / Tempered Glass ATX Mid Tower Case
- Steel / Tempered Glass ATX Mid Tower
- 2 x USB 3.0 / Audio Front Ports
- 2 x 3.5″ or 2.5″ Drive capacity Internal 3.5″ Drive Bays
|Series||Meshify C White – TG|
|Type||ATX Mid Tower|
|Case Material||Steel / Tempered Glass|
|With Power Supply||No|
|Power Supply Mounted||Bottom|
|Motherboard Compatibility||Micro ATX / ATX / ITX|
|Side Panel Window||Yes|
|Dust Filters||Bottom fan + PSU|
|Internal 3.5″ Drive Bays||2 x 3.5″ or 2.5″ Drive capacity|
|Internal 2.5″ Drive Bays||3 x Dedicated 2.5″ drive capacity|

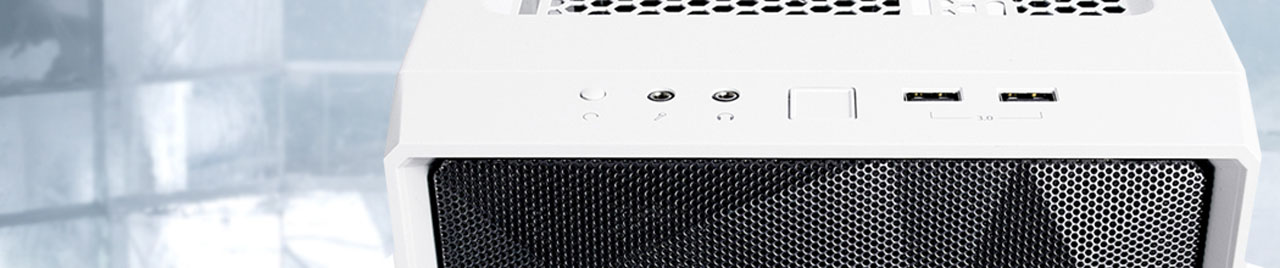

|Front Ports||2 x USB 3.0 / Audio|
|Fan Options||Front: 3 x 120mm fan (1 x Dynamic X2 GP-12 included) / 2 x 140mm fan|
Top: 2 x 120mm / 2 x 140mm fan
Rear: 1 x 120mm fan (1 x Dynamic X2 GP-12 included)
Bottom: 1 x 120mm fan
|Radiator Options||Front – Up to 280mm / Front – Up to 360mm / Rear – Up to 120mm / Top – Up to 240mm|
|Max GPU Length||315 mm|
|Max CPU Cooler Height||172 mm|
|Max PSU Length||175 mm|
|Dimensions (H x W x D)||17.83″ x 8.54″ x 16.26″|
|Features||Streamlined high-airflow design|
Performance and capacity of a larger tower in a remarkably compact mid-tower size
Newly designed angular mesh front panel maximizes air intake
Tempered glass side panel offers users a clean and clear view of their components
Distinctive new styling with stealthy black-on-black aesthetic
Flexible storage options with room for up to 5 drives
Sturdy steel drive trays with vibration-dampening rubber grommets cushion hard drives for smooth, quiet and reliable operation
Two preinstalled Fractal Design Dynamic X2 GP-12 120 mm fans deliver optimum airflow with minimal noise
Open interior layout creates an unobstructed airflow path from front intake to rear exhaust
Easy-to-clean filters on the front, top and base with full PSU coverage and convenient front access
Full length power supply shroud conceals drive cage and excess cabling for unrestricted airflow and a clean looking interior
Up to 35 mm of space behind motherboard plate with grommetted pass-through holes for clean cable routing
Meshify strikes an aggressive pose in the Fractal Design lineup with unparalleled cooling performance and a defiant new look.
Like diamond facets, the angular asymmetry of the Meshify C carves a space uniquely its own as a new force in high-airflow design. Tempered glass completes the distinct, stealth-inspired aesthetic with exceptional style. A compact yet spacious open layout creates an unrestricted airflow path from front intakes directly through key components to exhaust, ensuring heat is never an issue.
When performance is top priority and compromise is not an option, Meshify has you covered in style.
A DEFIANT NEW LOOK
Meshify’s distinctive styling features a newly designed angular mesh front panel that maximizes air intake.
CLEAR TEMPERED GLASS
Edge-to-edge interior visibility complements a clean exterior profile.
An open interior with a full-length, ventilated steel power supply shroud hides drives and cabling to create an unobstructed airflow path from front intake to rear exhaust.
Sturdy steel trays and vibration-dampening rubber grommets cushion your drives for smooth, quiet and reliable operation.
VERSATILE HARDWARE SUPPORT
Even the largest enthusiast-class GPUs leave plenty of room for thick triple-fan radiator in the front. The adjustable drive cage can be moved or removed to fit even the lengthiest heavy-duty PSUs.
FLEXIBLE STORAGE OPTIONS

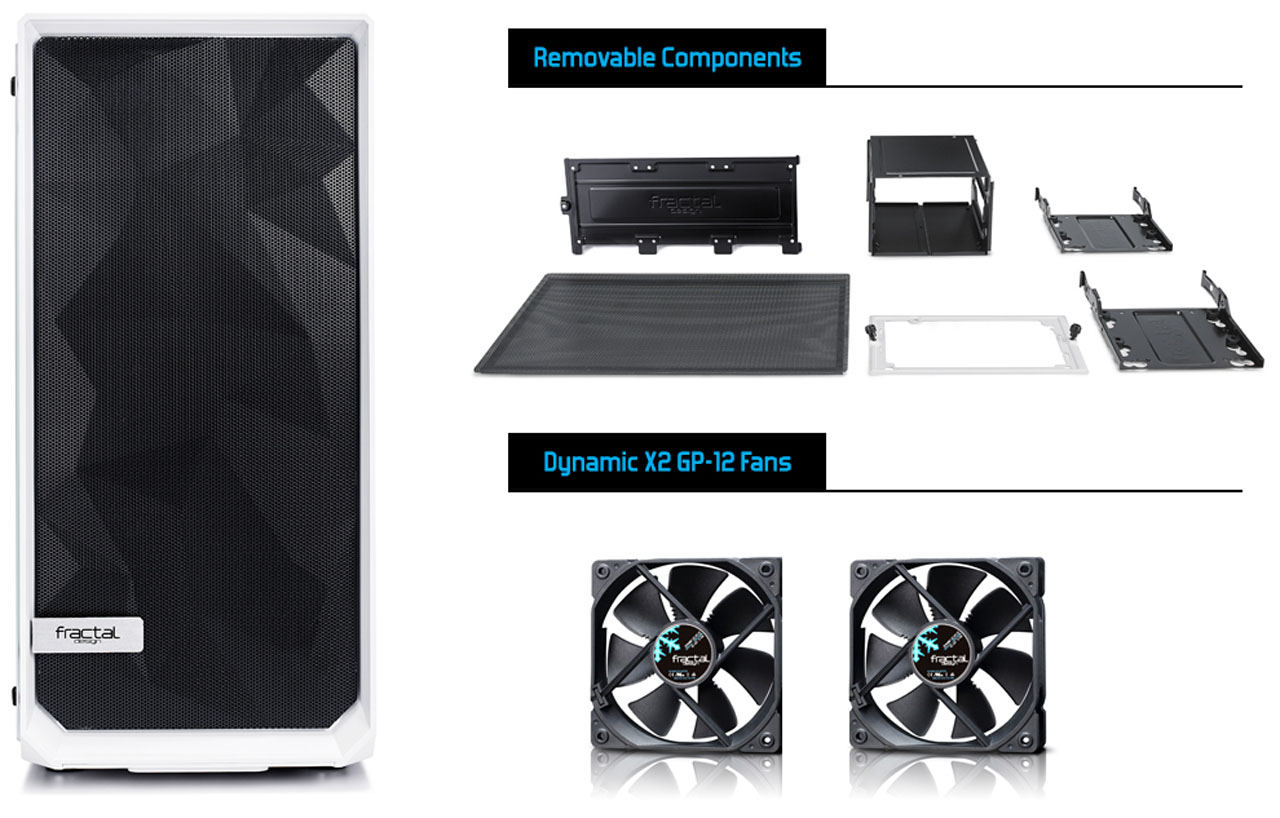

Conceal up to five storage devices with an adjustable and removable drive cage beneath the PSU shroud plus dedicated SSD mounts behind the motherboard tray.
Removable front, top and base filters channel clean air with effortless maintenance and convenient front access.
SUPERIOR AIR COOLING
Seven total fan positions allow for extensive air cooling. Two Fractal Design Dynamic X2 GP-12 fans come pre-installed for maximum airflow, minimal noise and 100,000-hour life expectancy.
EXPANSIVE WATER COOLING
Whatever your liquid cooling ambitions may be, Meshify C can make it happen with support for radiators up to 360mm in the front and 240mm up top.
