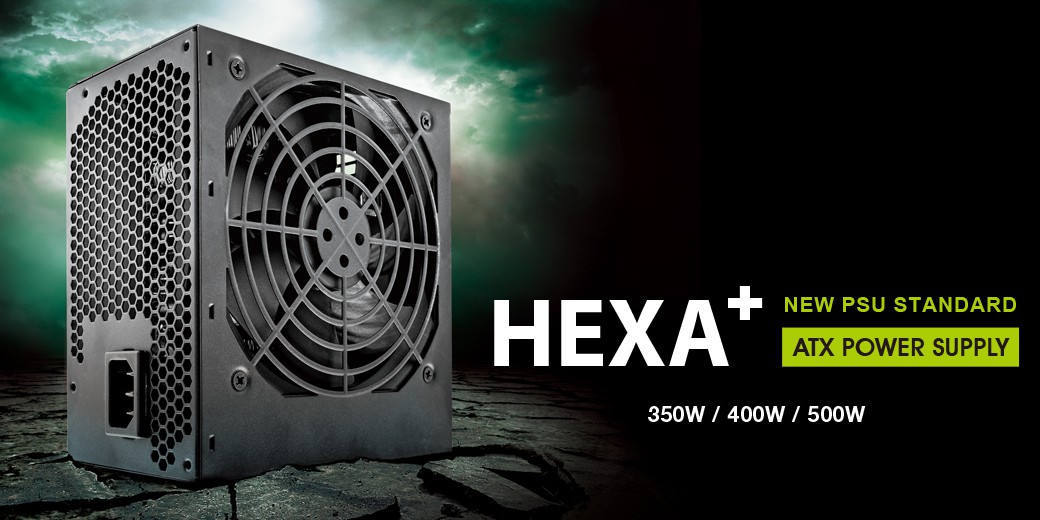

FSP HEXA+ 500W 12V Dual Rail Power Supply
- Complies with ATX 12V V2.4 & EPS 12V V2.92
- Meet 80% Efficiency
- +12V Dual Rail Design
- PCI-E Express Graphic Card Connector
- Quiet, Long Lasting 120mm Fan
- Complete Protections: OCP, OVP, SCP
- Intel Haswell Platform Ready
- Multiple Safety Approvals
- Meet ErP/EuP 2013 Standard
HEXA series but with upgrade high-quality and much value-priced.
120mm long lasting fan provides superior cooling with minimal noise.
HEXA+ Series also provides PCI-Express graphic card connector(s) and 4 units above SATA cable to take
care of your need for storage.
Built with quality components and dual +12V outputs, HEXA+ Series ensures stabilityand reliability for your system.
Besides, HEXA+ Series also protects your PC by providing complete protection
(OCP, OVP, SCP) and multiple safety approvals.
Compared with HEXA series, HEXA+ series is with longer length of 24 Pin also 4+4 Pin cable,
it’s much convenient for you to assemble.
HEXA+ Series dose the job efficiently and reliably, making it a stable power supply unit built to satisfy
the demands on users looking for entry-level power or the budget minded system builder.
|AC Input||200-240Vac ~ 4A 50Hz|
|Max Output Current||24A||24A||18A||18A||0.5A||2.5A|
|Max Combined Power||123W||432W||18.5W|
|ATX 20+4||4+4 PIN||PCI-E 6+2||SATA||Molex|
|Rated Output Power||500W|
|Form Factor||ATX 12V V2.4 & EPS 12V V2.92|
|PFC||Active PFC (>0.9 typical)|
|Efficiency||Meet 80% @ Typical Load|
|Fan Type||120mm Quiet Fan|
|Dimensions(Lx W x H)||150 x 140 x 86 mm|
|Operation Temp.||0~40°C / 32°F~104°F|
